21in Mulching/Rear Bagging Lawn Mower
Product Information
- Model #: 10736
- Serial #: 314000001 - 314200000
- Product Type: Walk Behind Mowers
Loading...

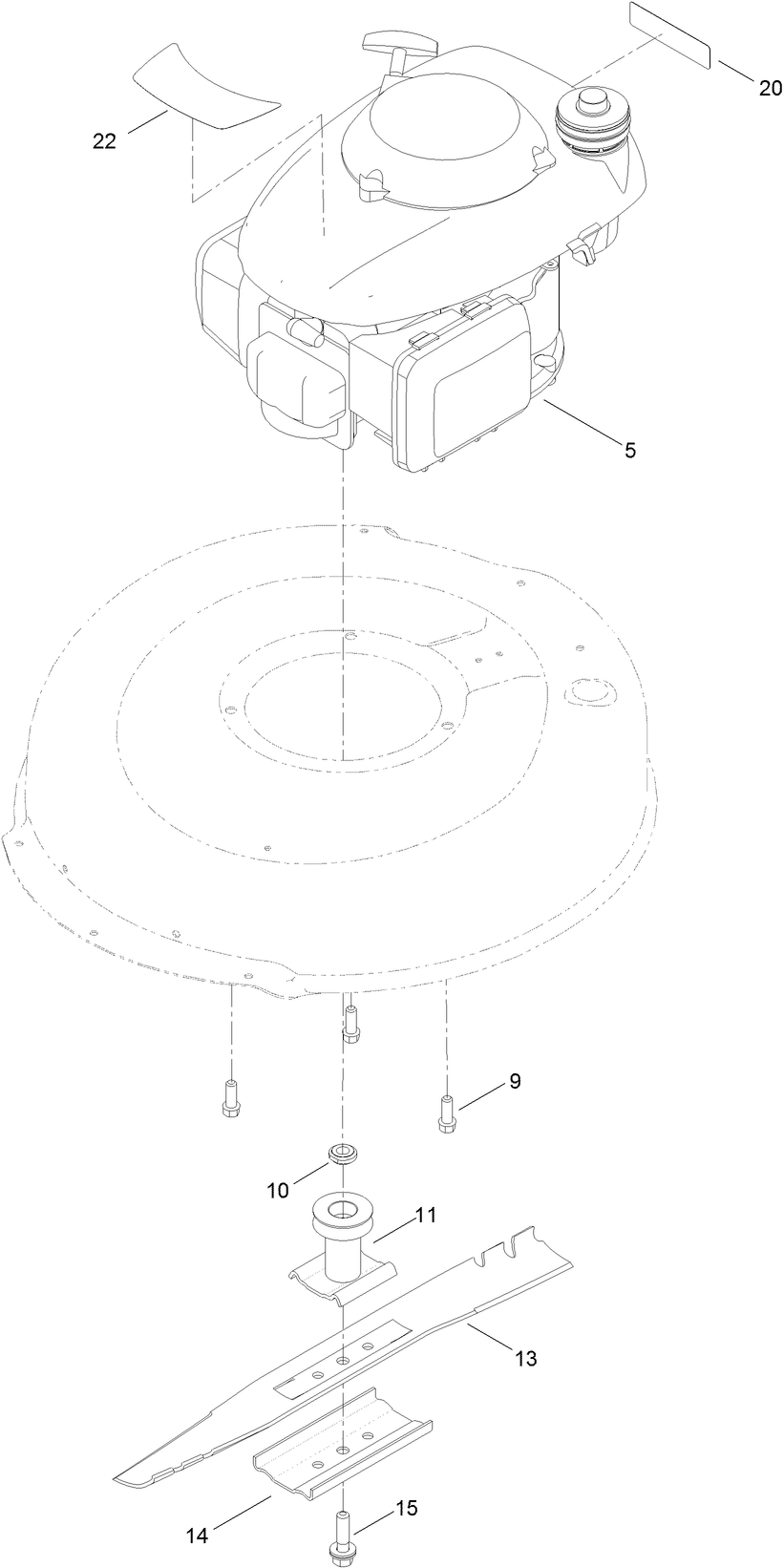

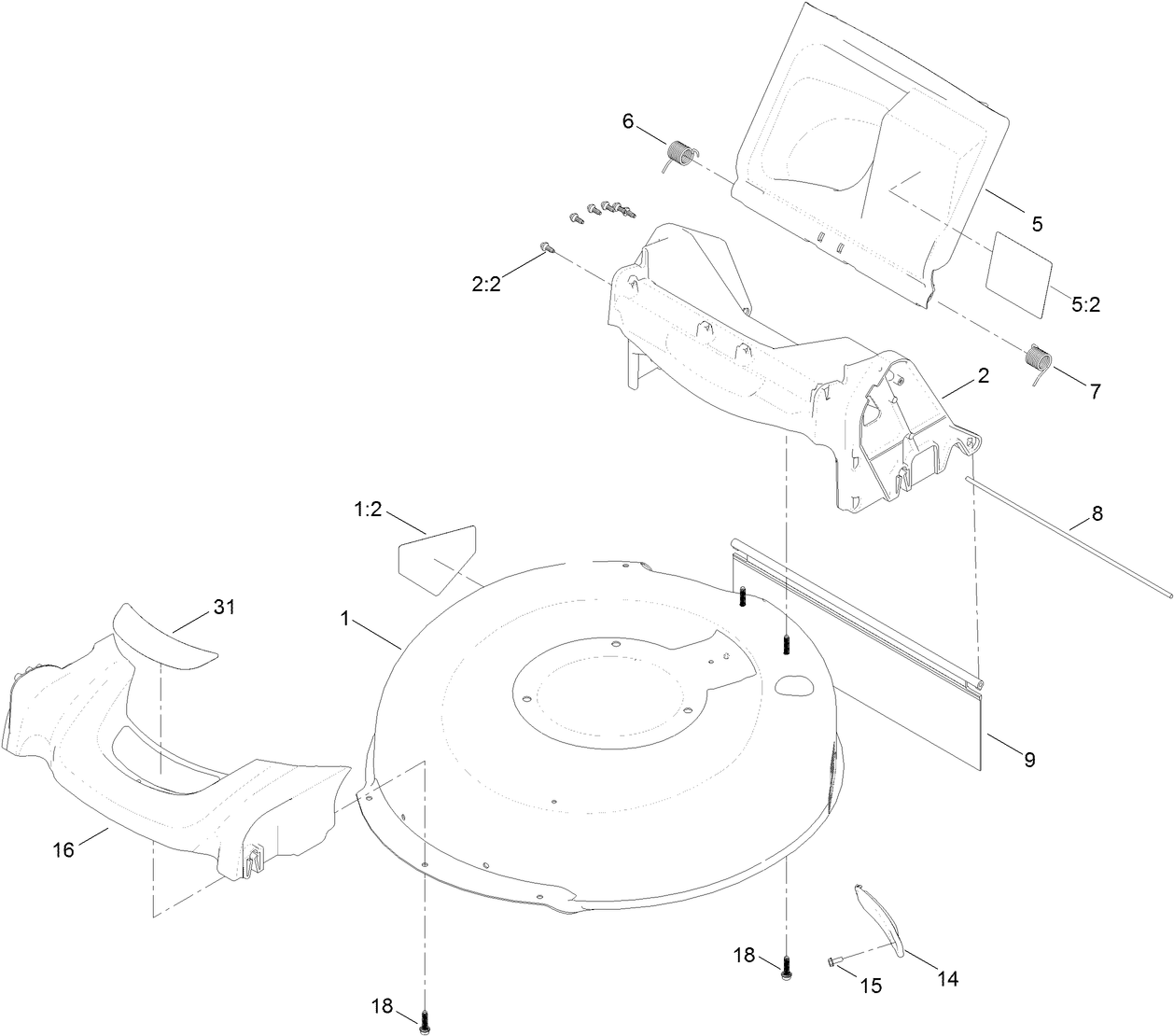

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Model #: 130-6653
LAWNBOY PREMIUM FUEL TREATMENT .5 OZ -
Model #: 89500
21IN LAWNBOY REPLACEMENT BAG -
Model #: 89501
21IN LAWNBOY BAG AND FRAME KIT -
Model #: 89502
Side-Discharge Deflector, 2013 and After 21in Steel Deck Mower -
Model #: 89914P
21IN LB WPM BLADE
-
Model #
10736 -
Serial #
314000001 - 314200000 -
Product Name
21in Mulching/Rear Bagging Lawn Mower -
Product Brand
Lawnboy -
Product Type
Walk Behind Mowers -
Product Series
21" Steel Deck -
Chassis Type
Steel Deck WPM -
Swath
21 inch -
Discharge
Mulcher & Rear Bagger -
Engine/Motor Manufacturer
Honda -
Engine/Motor Size
160cc -
Engine/Motor Type
4 Cycle -
Engine Starter
Recoil -
Transmission Type
Hand Push -
Traction Type
NA
-
Engine: Spark Plug
NGK BPR5ES -
Engine: Spark Plug Gap
.028"/ .7mm -
Engine: Ignition Coil Air Gap
.008-.024" / .2-.6mm -
Chassis: Tire Pressure
N/A -
Engine: Engine Speed
3050±150 RPM -
Chassis: Height of Cut Range
1.25-3.75"; 1/2" increments -
Engine: Engine Oil Type
18.6 oz. (0.55 L) SAE 30 or SAE 10W-30 / API SF, SG, SH, SJ, SL, or higher
