  3. Model 17752 - Serial 400000000 - 414899999

21in Mulching/Rear Bagging Lawn Mower

Product Information

  • Model #: 17752
  • Serial #: 400000000 - 414899999
  • Product Type: Walk Behind Mowers

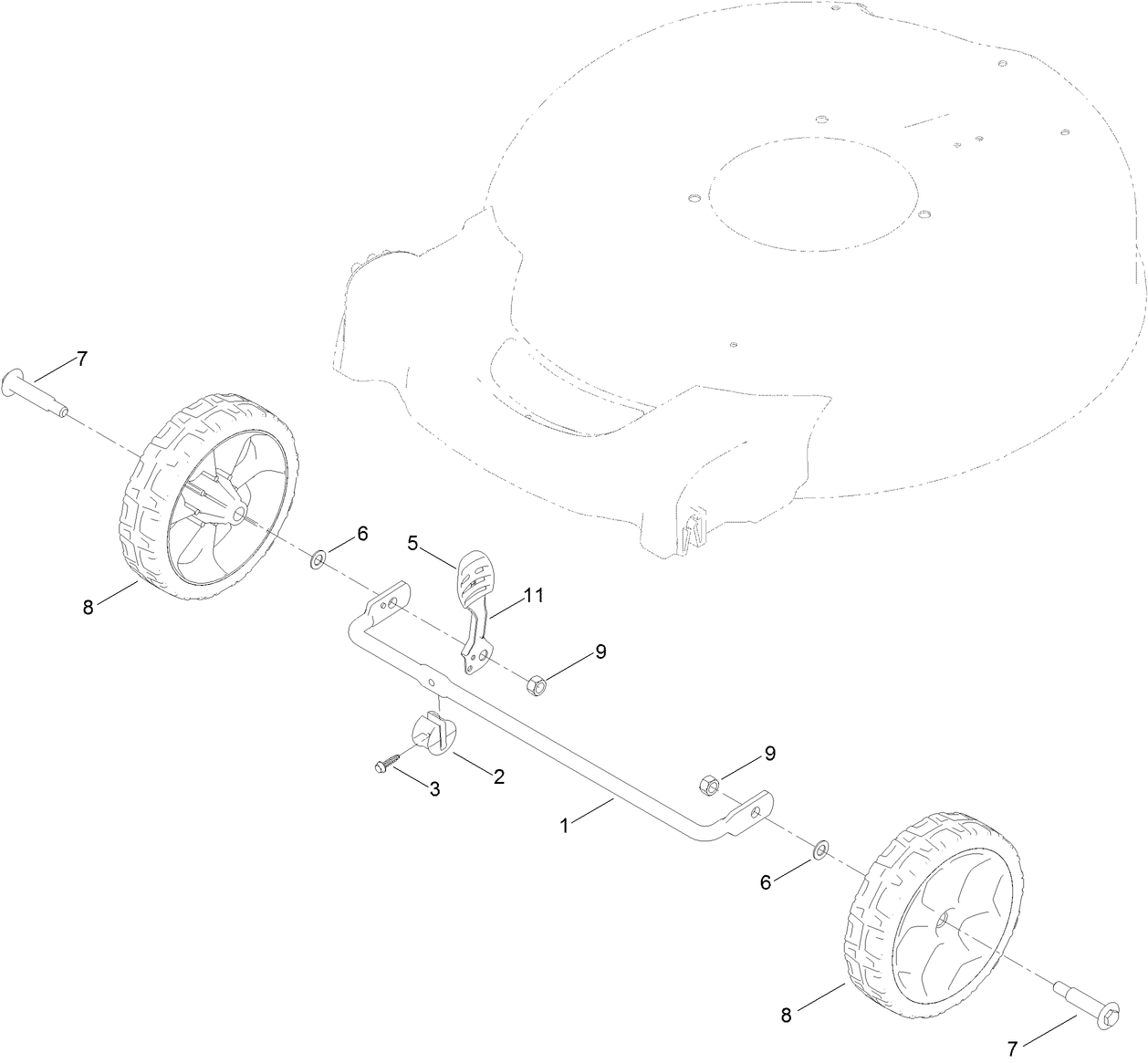

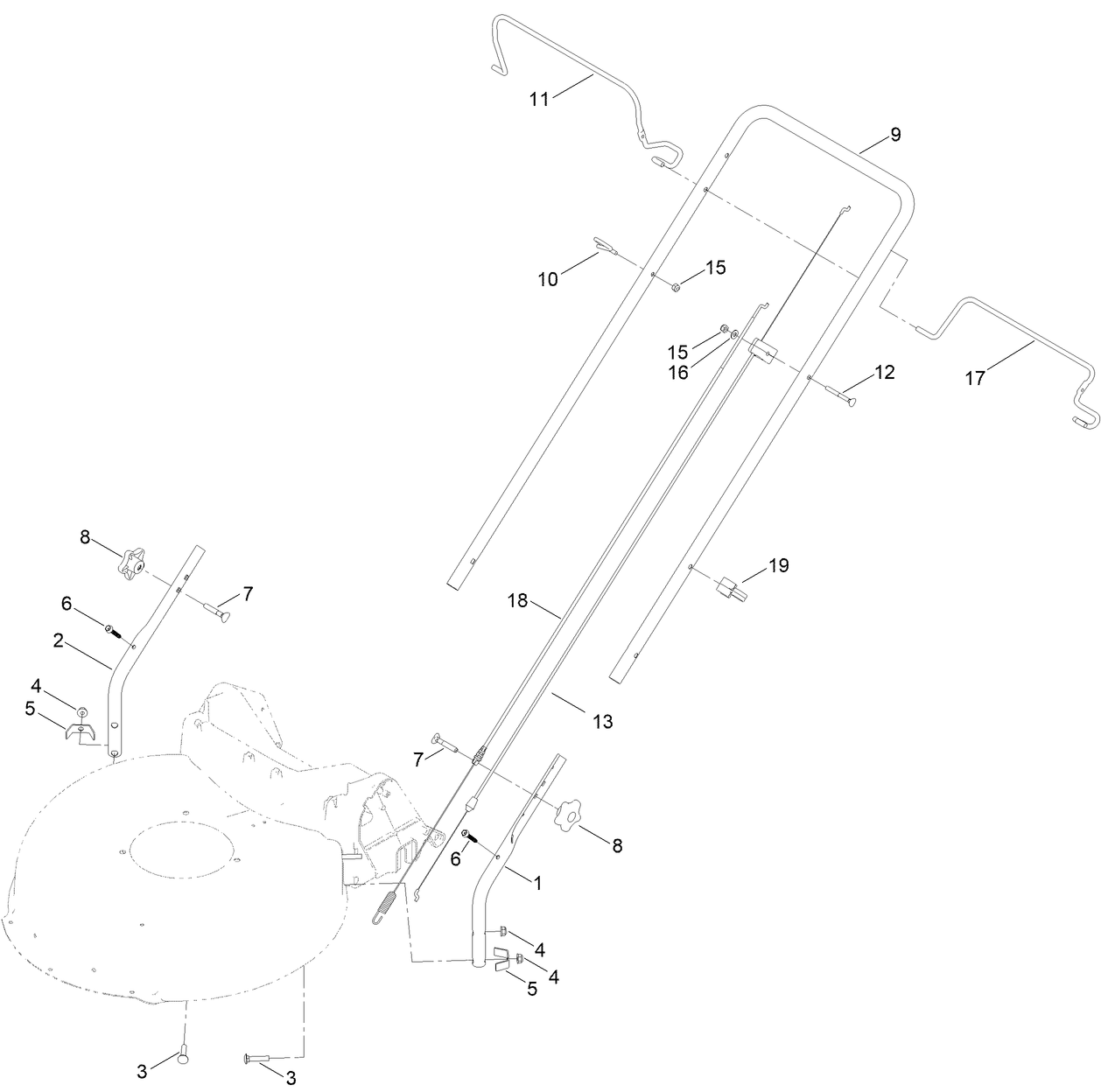

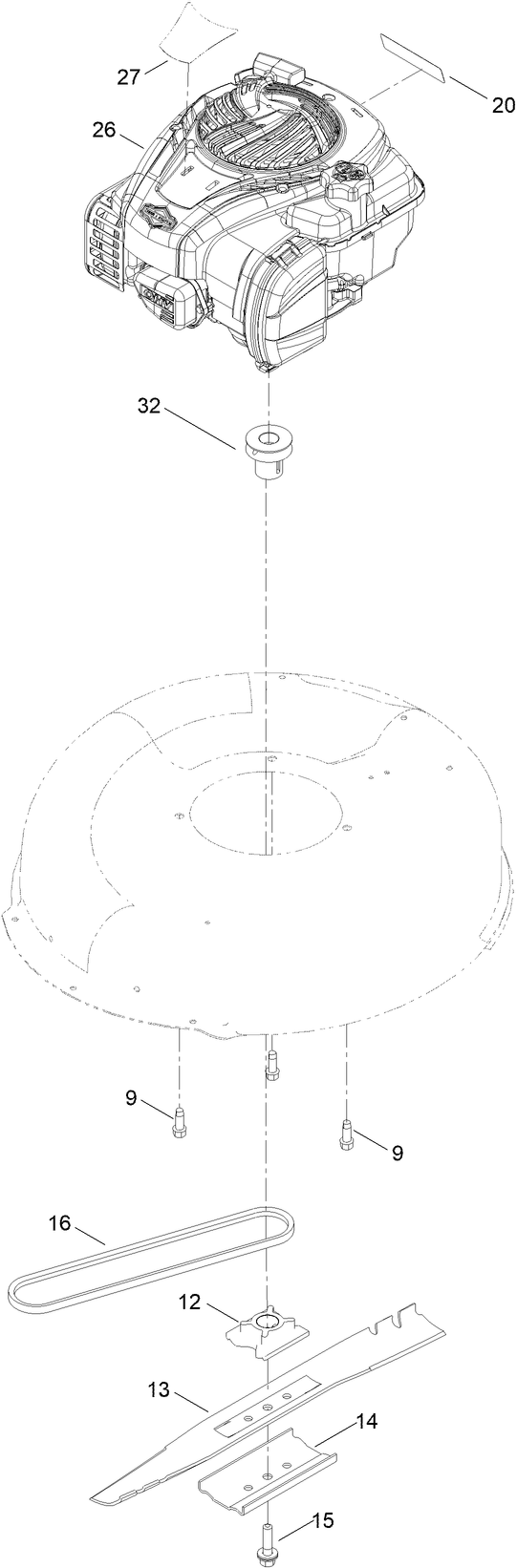

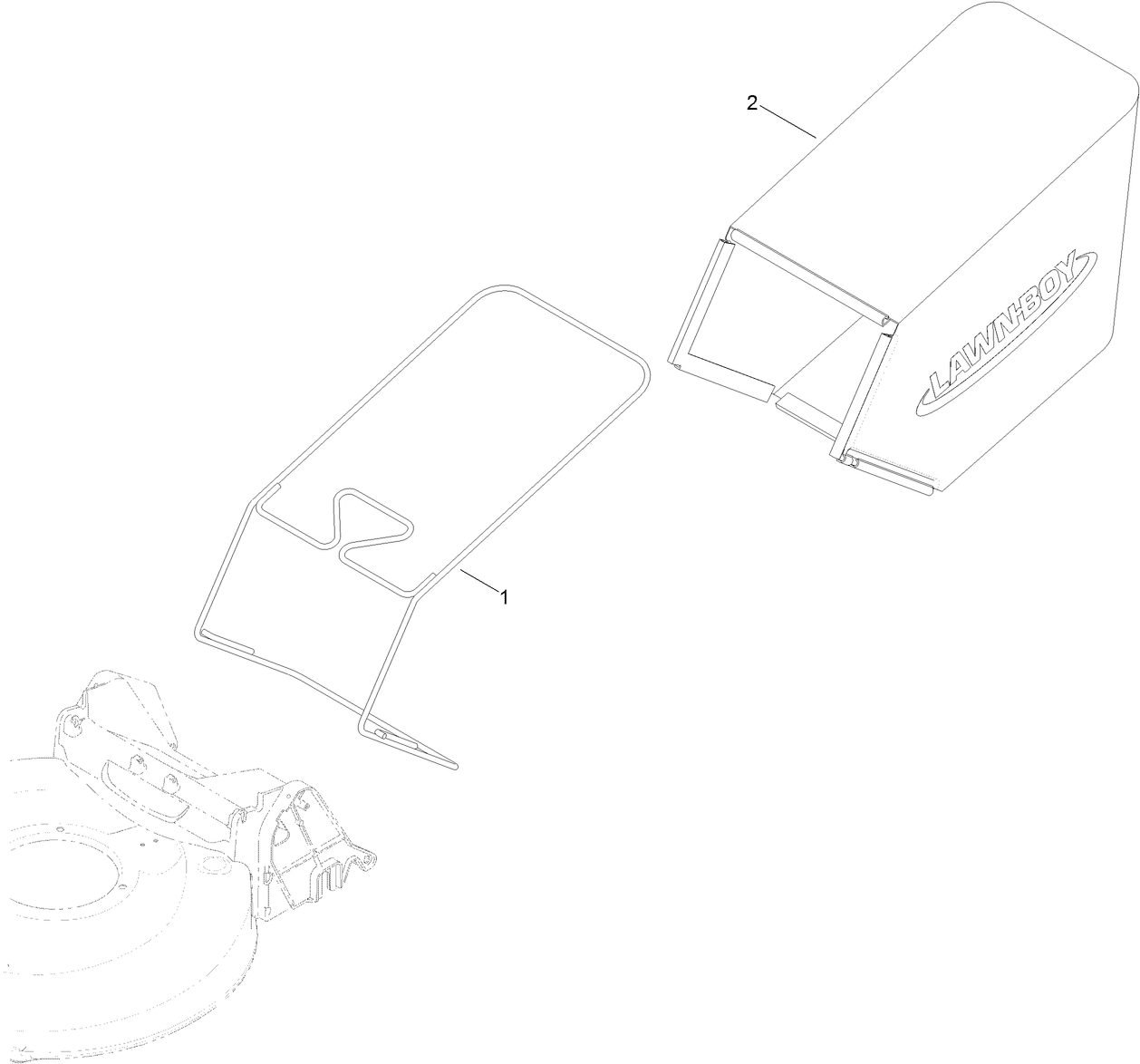

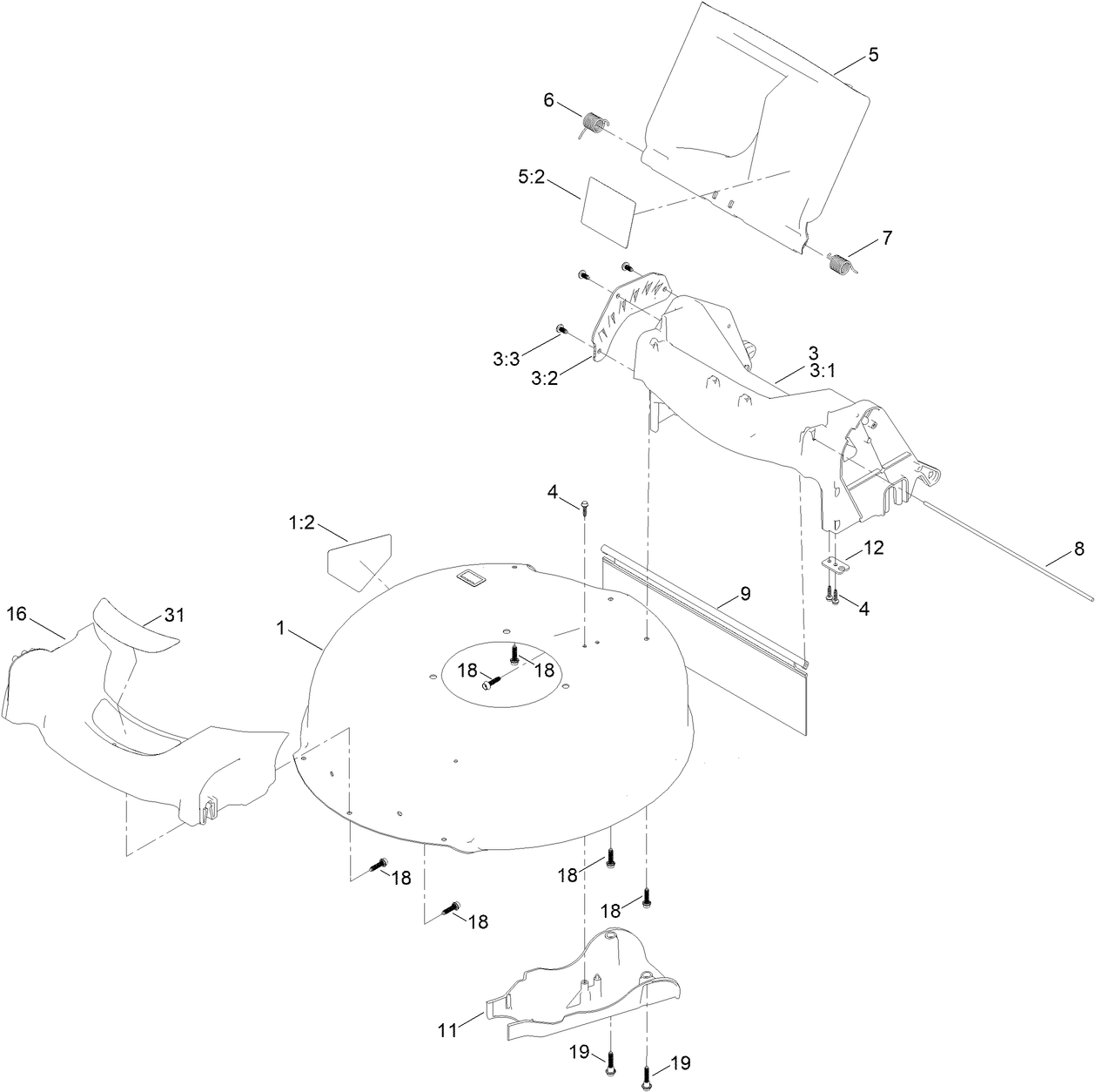

Assembly Drawings

Search for a part within assembly drawings:

  • Model #: 110-8800
    Lawn-Boy Leaf Green Paint, 4.5 oz. spray can
  • Model #: 130-6653
    LAWNBOY PREMIUM FUEL TREATMENT .5 OZ
  • Model #: 136-7060
    Side-Discharge Deflector, 2013 and After 21in Steel Deck Mower
  • Model #: 20601
    Lawn Striping Kit with 22in Roller, Walk-Behind Lawn Mowers
  • Model #: 215326
    Lawn-Boy Walk Mower Cover
  • Model #: 89500
    21IN LAWNBOY REPLACEMENT BAG
  • Model #: 89501
    21IN LAWNBOY BAG AND FRAME KIT
  • Model #: 89885
    OIL-LAWNBOY, 4 CYC, 18 OZ BTL
  • Model #: 89914P
    21IN LB WPM BLADE

  • Model #
    17752
  • Serial #
    400000000 - 414899999
  • Product Name
    21in Mulching/Rear Bagging Lawn Mower
  • Product Brand
    Lawnboy
  • Product Type
    Walk Behind Mowers
  • Product Series
    21" Steel Deck
  • Chassis Type
    Walk Behind
  • Swath
    21 inch
  • Discharge
    Recycler & Side and Rear Discharge & Rear Bag
  • Engine/Motor Manufacturer
    Briggs & Stratton
  • Engine/Motor Size
    GrossTorque 5.5f/lb
  • Engine/Motor Type
    4 Cycle
  • Engine Starter
    Recoil
  • Traction Type
    Rear WD

  • Engine: Engine Speed
    3100±100 RPM
  • Engine: Ignition Coil Air Gap
    .010" / .25mm
  • Chassis: Tire Pressure
    N/A
  • Engine: Engine Oil Type
    16 oz. (.47 L) 10W-30 or SAE 30 / API SJ or higher
  • Chassis: Height of Cut Range
    1.25-3.75"; 1/2" increments
