2. Parts
  3. Model 17750 - Serial 414900000 - 999999999

21in Mulching/Rear Bagging Lawn Mower

Product Information

  • Model #: 17750
  • Serial #: 414900000 - 999999999
  • Product Type: Walk Behind Mowers

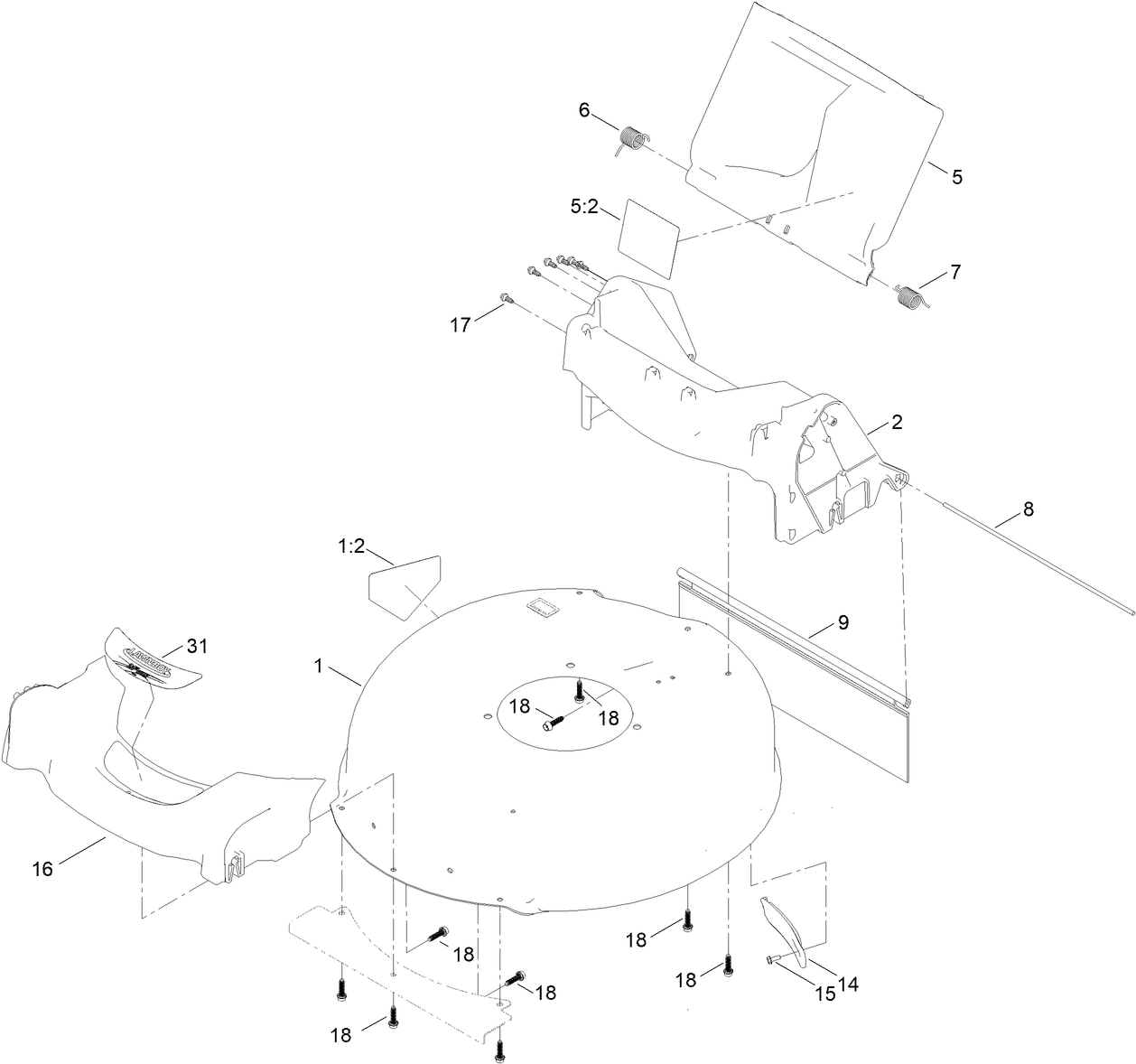

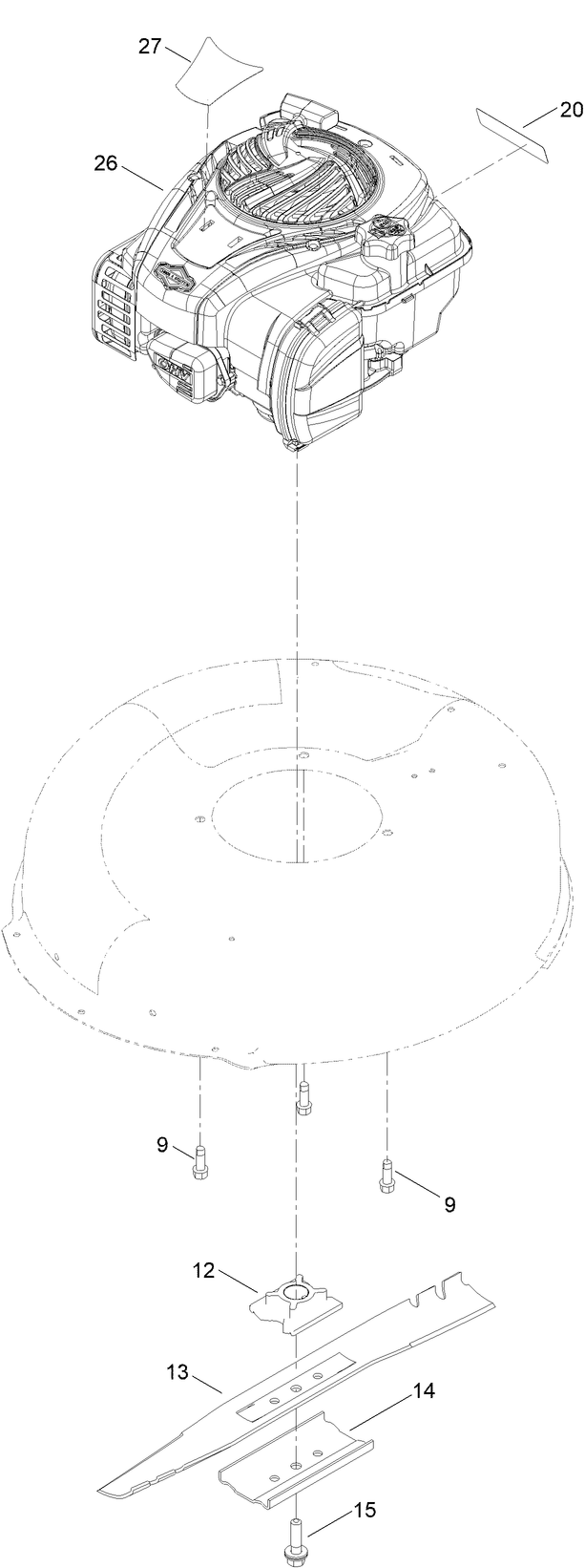

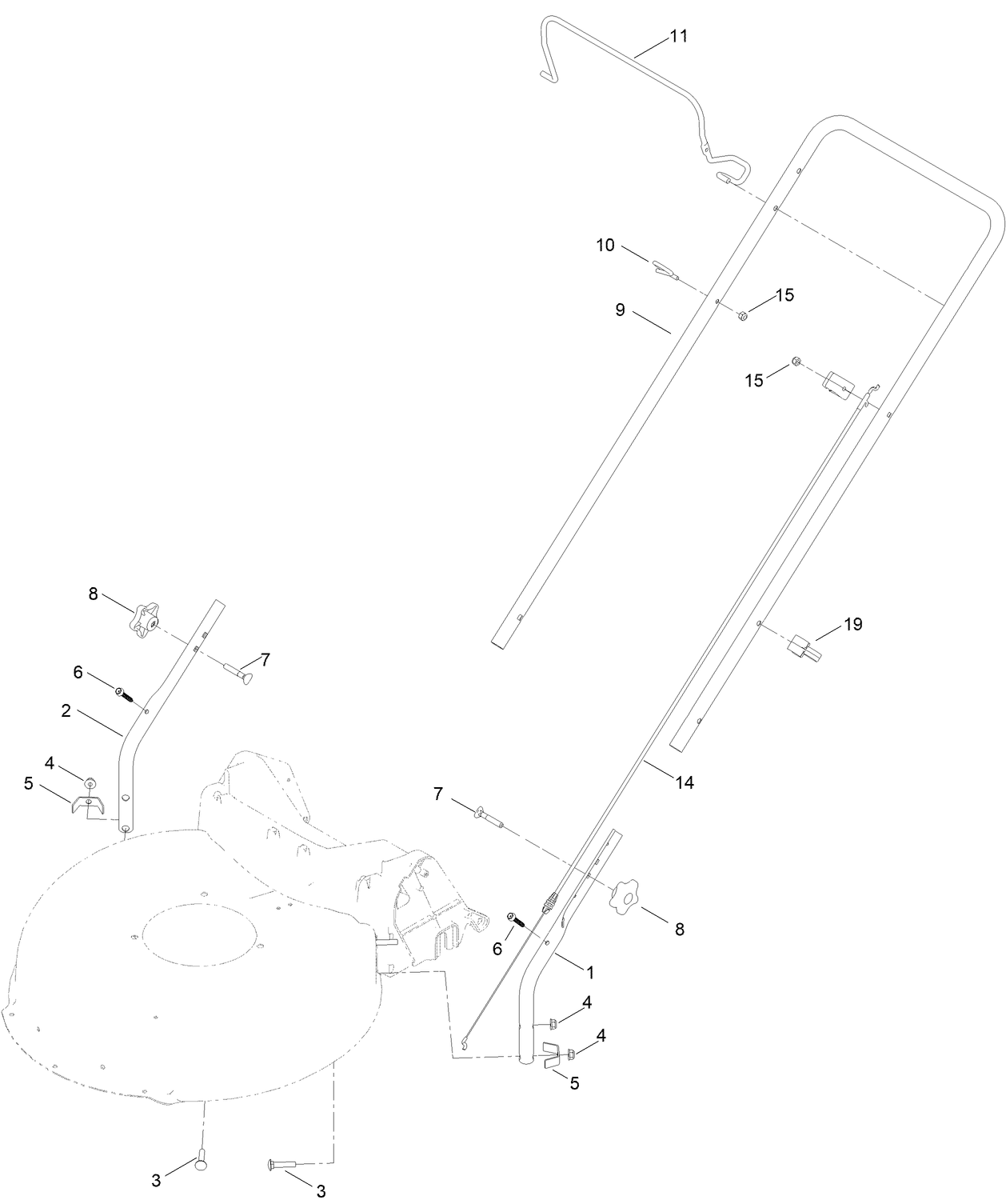

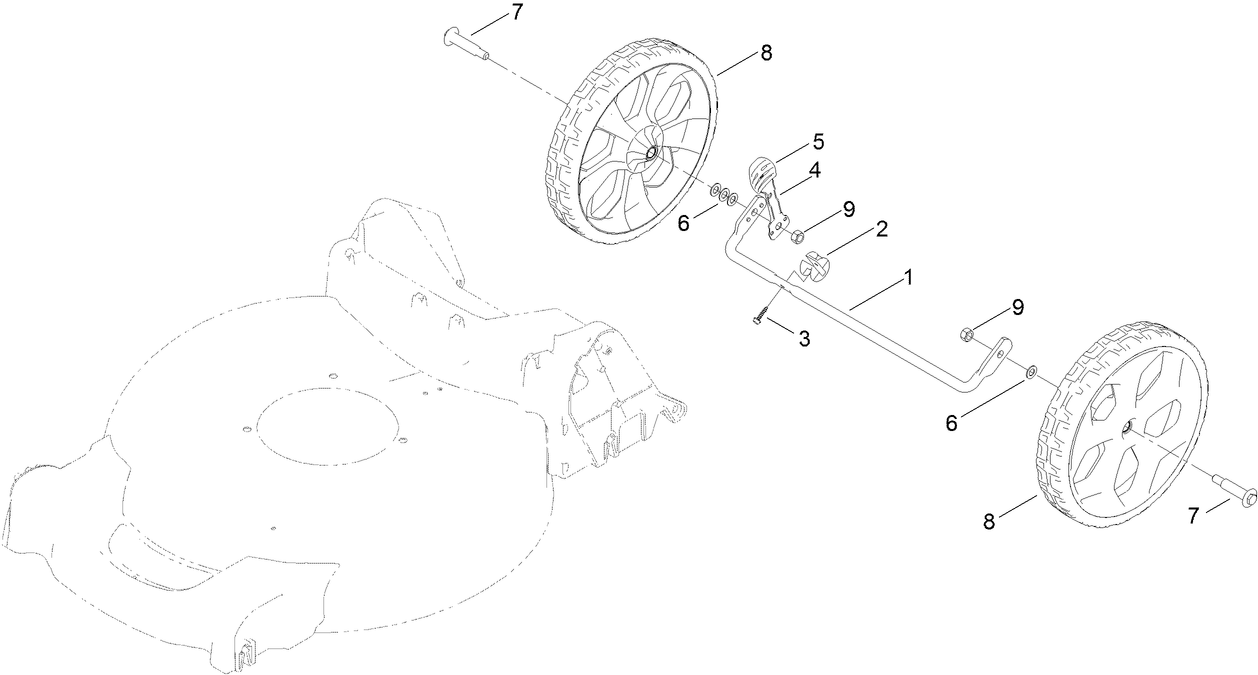

Assembly Drawings

Search for a part within assembly drawings:

  • Model #
    17750
  • Serial #
    414900000 - 999999999
  • Product Name
    21in Mulching/Rear Bagging Lawn Mower
  • Product Brand
    Lawnboy
  • Product Type
    Walk Behind Mowers
  • Product Series
    21" Steel Deck
  • Chassis Type
    Walk Behind
  • Swath
    21 inch
  • Discharge
    Recycler & Side Discharge with Rear Bag
  • Engine/Motor Manufacturer
    Briggs & Stratton
  • Engine/Motor Size
    GrossTorque 5.5f/lb
  • Engine/Motor Type
    4 Cycle
  • Engine Starter
    Recoil
  • Transmission Type
    Hand Push
  • Traction Type
    NA

  • Engine: Engine Speed
    3100±100 RPM
  • Engine: Ignition Coil Air Gap
    .010" / .25mm
  • Chassis: Tire Pressure
    N/A
  • Engine: Engine Oil Type
    16 oz. (.47 L) 10W-30 or SAE 30 / API SJ or higher
  • Chassis: Height of Cut Range
    1.25-3.75"; 1/2" increments
